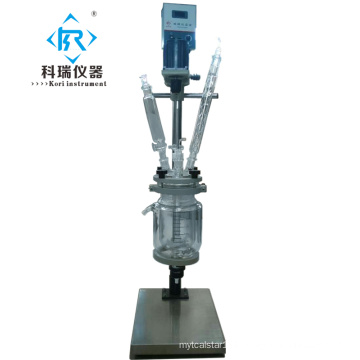

Laboratory Mini jacketed glass reactor Agitated Reactor
  • Laboratory Mini jacketed glass reactor Agitated Reactor
  • Laboratory Mini jacketed glass reactor Agitated Reactor
  • Laboratory Mini jacketed glass reactor Agitated Reactor
  • Laboratory Mini jacketed glass reactor Agitated Reactor
  • Laboratory Mini jacketed glass reactor Agitated Reactor
  • Laboratory Mini jacketed glass reactor Agitated Reactor

Laboratory Mini jacketed glass reactor Agitated Reactor

Unit Price: 1095 USD
Min. Order: 1 Set/Sets

Basic Info

Model No.: SF-1L

Product Description

Product introduction

Xingyang Kori Instrument Factory is manufacturing Glass Reactor with different size at 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L

10L,20L,30L,50L,100L,150L,200L are optional for Explosion proof .

Our company's main Glass Reactor, Rotary Evaporator Rotovap, Nutsche Filter, Lab Heating Cooling Machine, Short Path Distillation, Hydrothermal synthesis reactor.

Jacketed Glass reactors permit heat exchange for better dissolving and crystallization.

It can be used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials. The products can be made into system devices with multi-purpose circulating water vacuum pump,circulating oil bath ,low temperature cooling liquid circulating pump and closed cooling and heating circulating equipment.

Structure

Laboratory Mini jacketed glass reactor Agitated Reactor

Technical Data

Model SF-1L SF-2L SF-3L SF-5L
Reactor Capacity 1L 2L 3L 5L
Stirring Speed(rpm) 60-1000
Stirring Power 40W 60W 60W 90W
Dia.Stirring Paddle 7mm
Vacuum Degree 0.098MPa
Voltage (V/Hz) 220V/50Hz
Discharge Valve PTFE Bottom Discharge Valve


Main Features

Xingyang Kori Instrument Factory is manufacturing Glass Reactor with different size at 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L

1. GG3.3 borosilicate glass, good chemical and physical properties.

2. AC induction motor, Digital display of mixing speed, frequency conversion, and constant speed mixing system, brushless, no spark, safe and stable.

3. Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.

4. PTFE discharge valve can discharge materials thoroughly and quickly.

5. Can work under pressure and vacuum conditions, under vacuum of about 0.098MPa up to the stationary state.

6. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L

How to work

1.Through Interlayer of double lined glass reactor, Inject material or Liquid with thermally dissolved or cooling into Glass reaction vessel.

2. Connect External Heating or cooling Equipment with Double Lined glass reactor

3. Stir material or liquid at constant speed heated by Agitator .

4. It can stir and react under the natural pressure or negative pressure in the sealed reactor

Product Series


Laboratory Mini jacketed glass reactor Agitated ReactorLaboratory Mini jacketed glass reactor Agitated Reactor

FAQ

1. Are you manufacturer or trading company?
We are professional manufacturer of lab instruments with a history of10 years.

2. How to choose suitable equipment ?
You tell us your requirements (For example: capacity, temperature range, pressure,

etc ), we will recommend you the best suitable equipment.

3. What's the size do you have?
We can offer you 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 100L,150L.200L

4. How many kinds of your glass reactor?
Three types: Single lined , Double lined ,Triple lined Explosion proof is available
